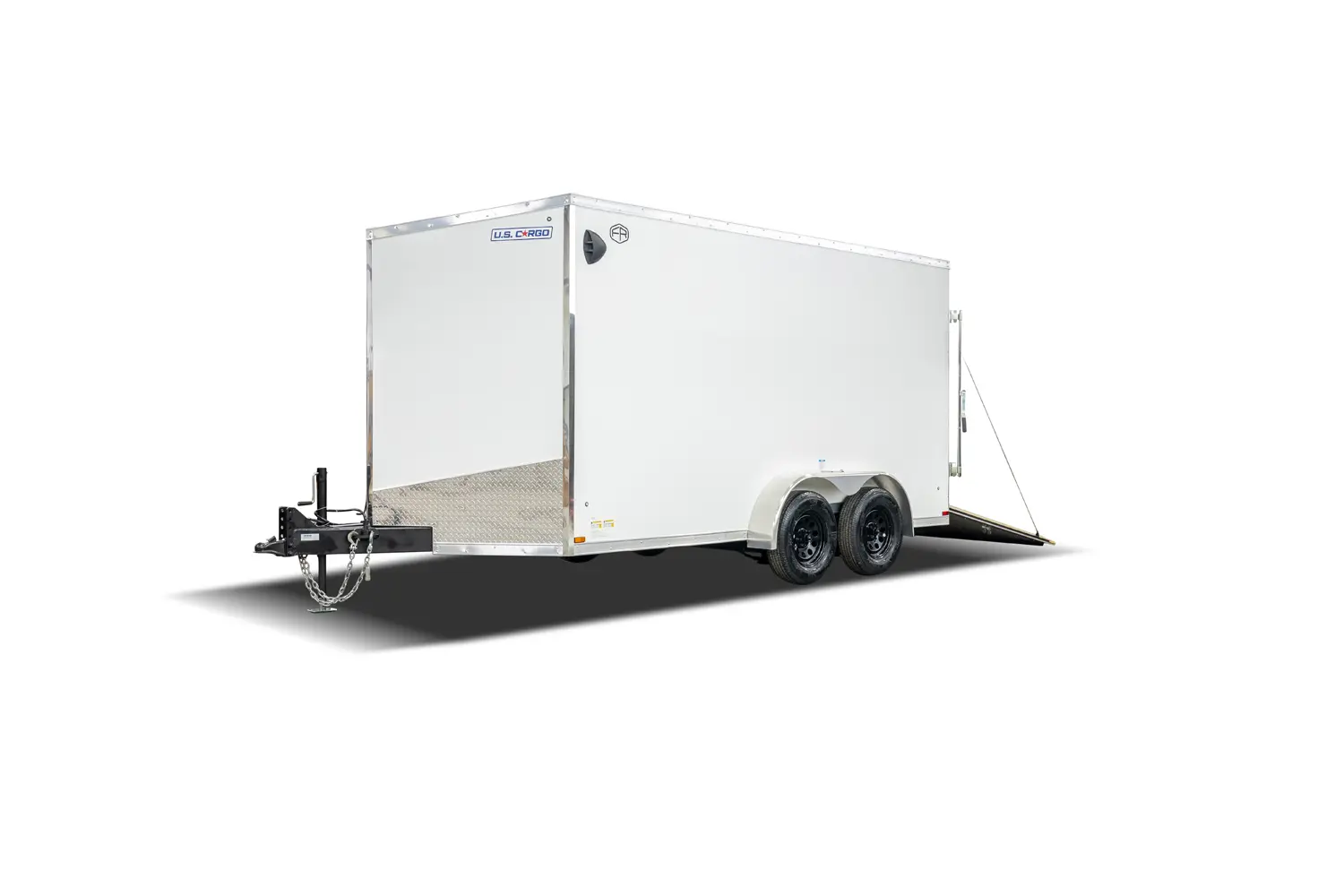

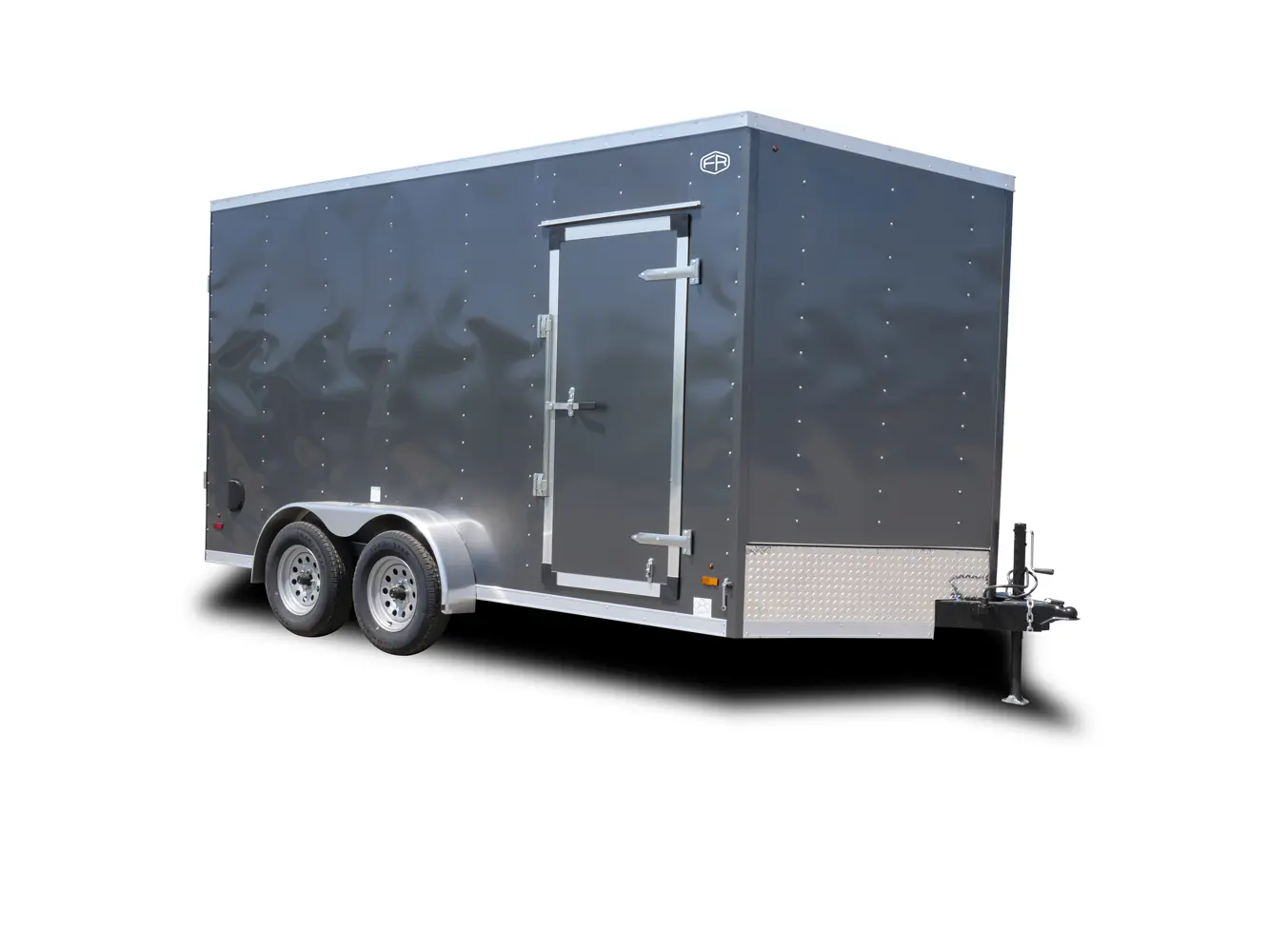

US CARGO ULAFT ENCLOSED TRAILERS
The ULAFT general purpose enclosed trailer comes loaded with performance features other basic trailers just don’t have. The quality and performance make it a real value. The ULAFT is perfect for everyday home, farm or business use.

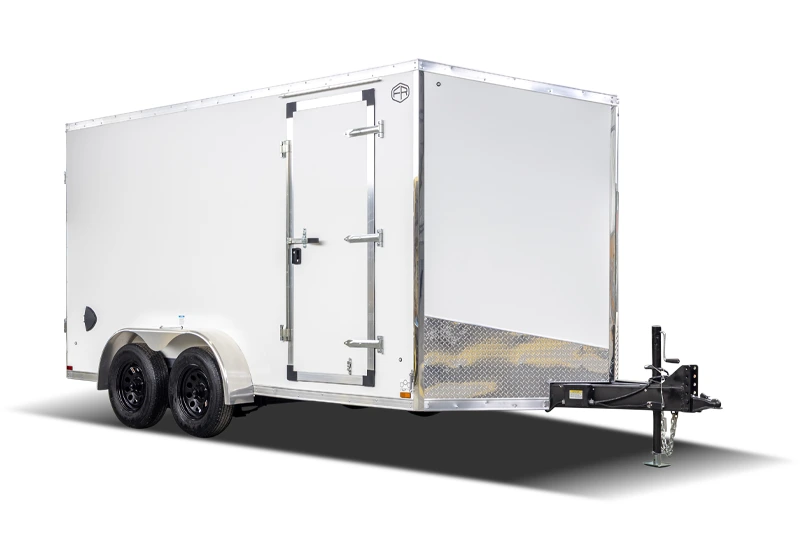

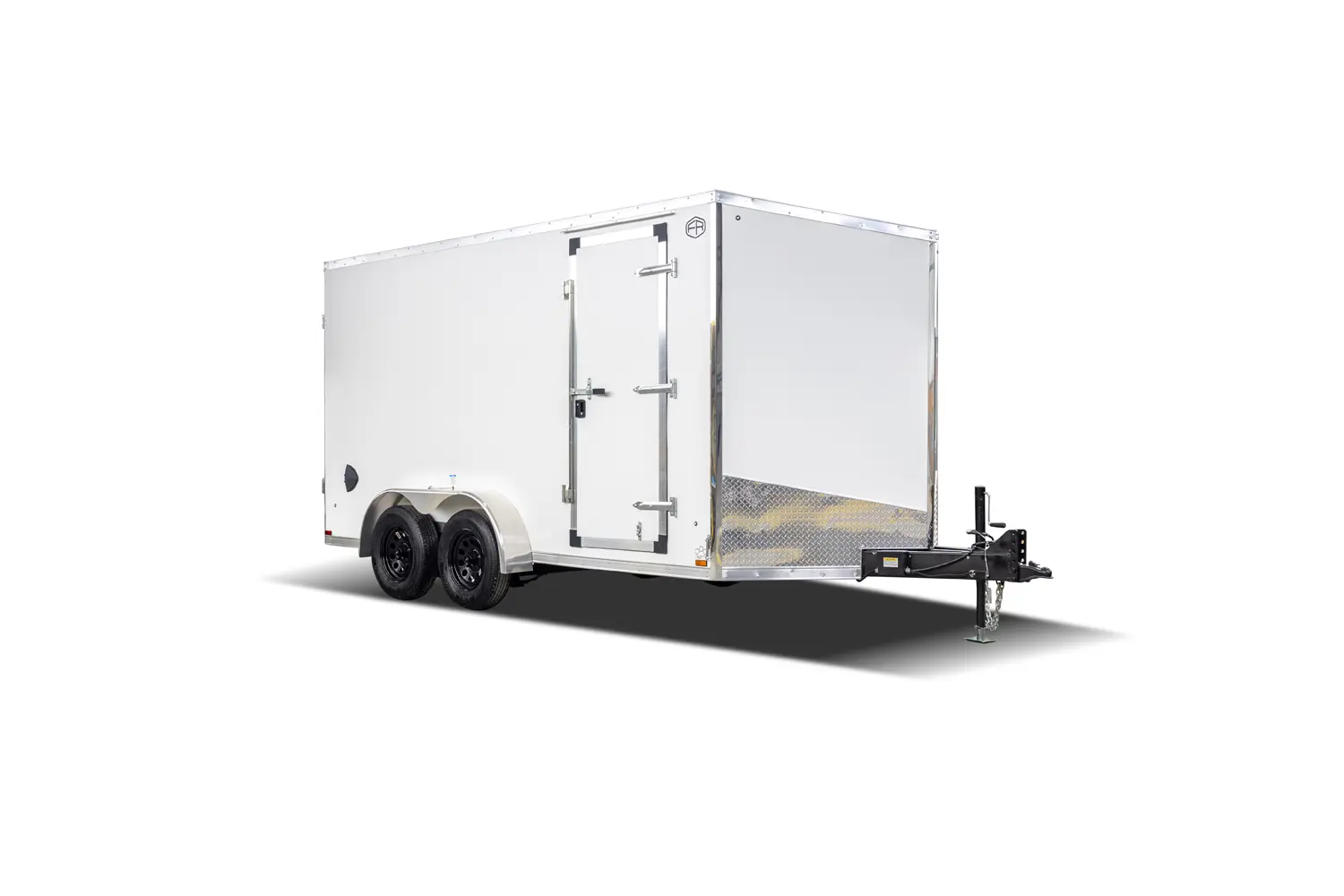

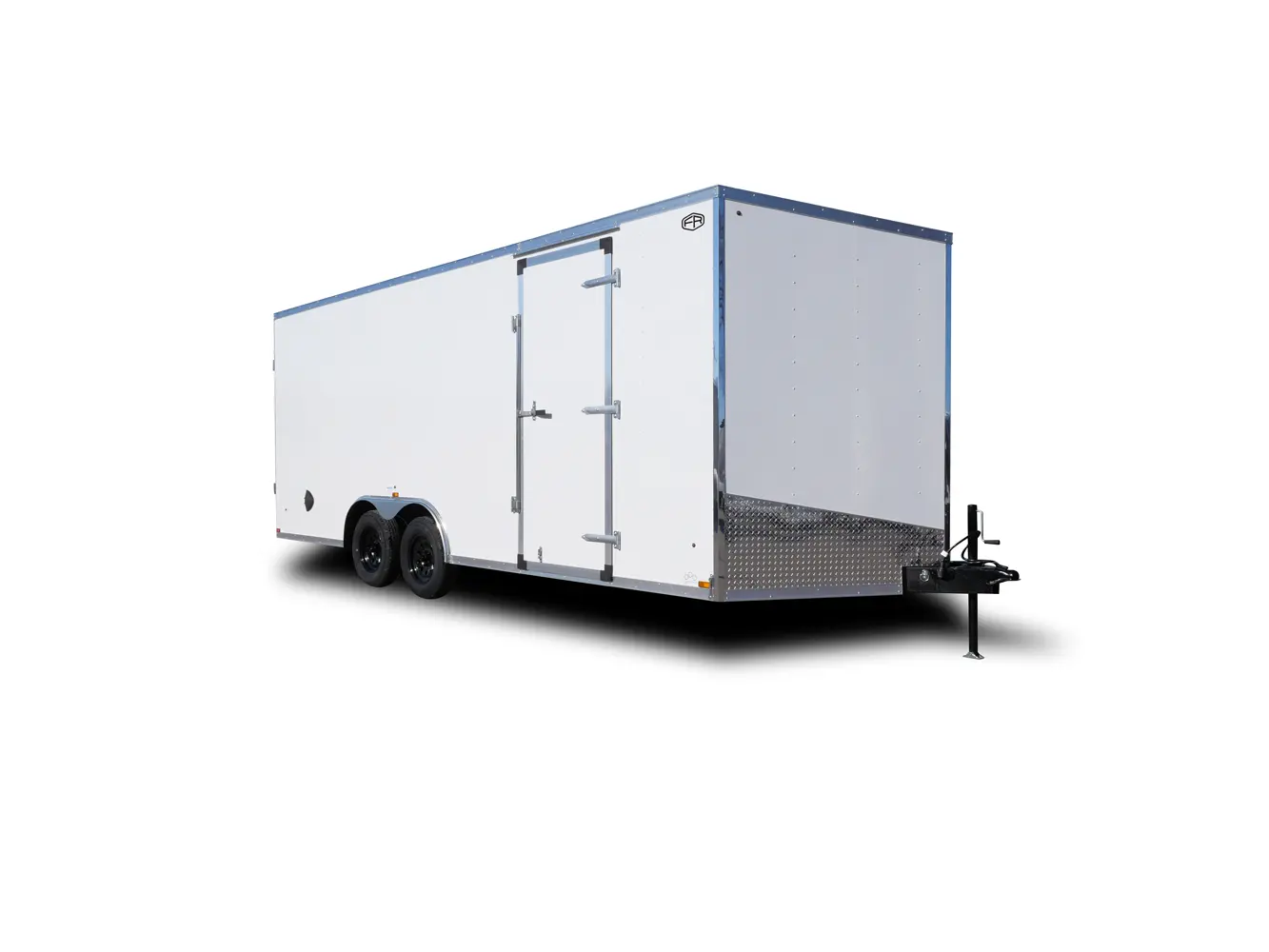

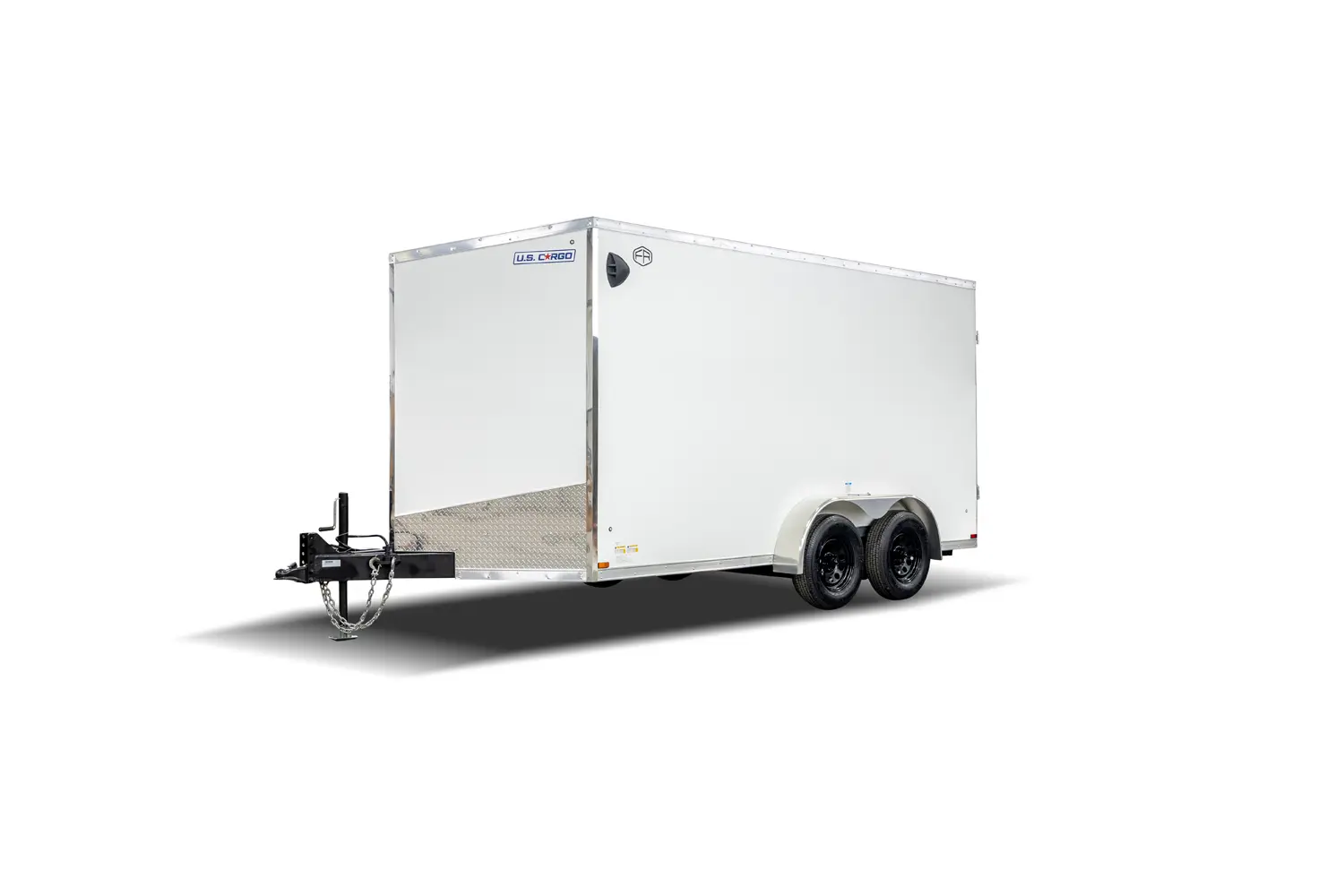

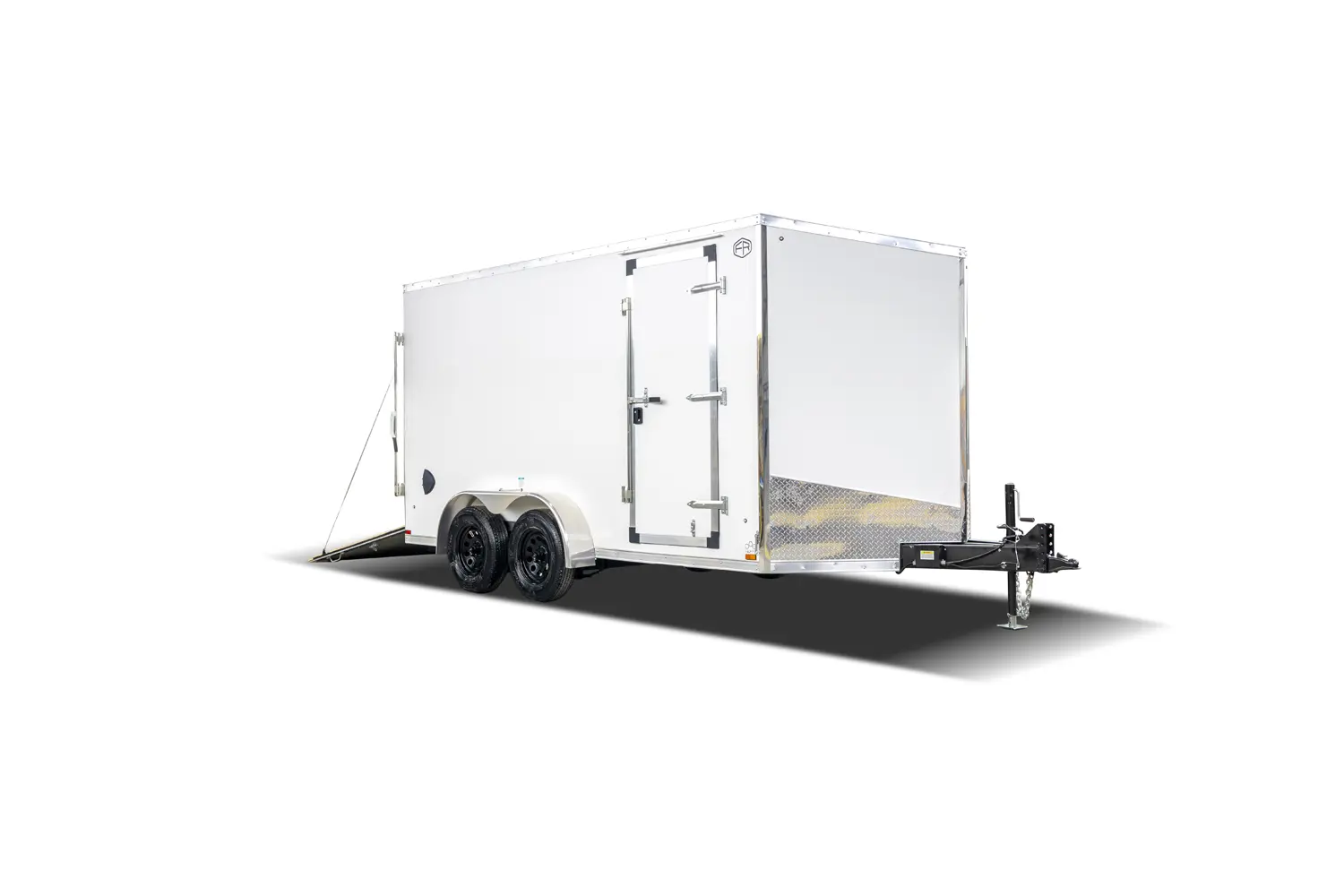

This great looking trailer sports a v-nose wedge front which slices through wind resistance making it easy to pull. The quality components and construction deliver a great user experience and the 5 year warranty on tires with a 24/7 emergency roadside assistance, lifetime warranty on LED lights and the Forest River Inc., one year limited warranty give you confidence and peace of mind.
-
- 2" x 3" Perimeter Tube Frame on 4', 5' and 6' wide Single Axle
- 2" x 4" Perimeter Tube Frame on 6' wide Tandem Axles
- 6" I-Beam Frame on TA3 Models 16' and Longer
- 6" I-Beam Frame on 8.5' wide TA2 and TA3 up to 24' Long
- 8" I-Beam on 8.5' wide TA3 26' Long and over
- A-Frame Tongue with 2,000 lb. Tongue Jack
- Tube Wall Posts 24" On Center (4', 5', 6', 7', and 8.5' Wide Models)
- Tube Roof Bows 24" On Center (4', 5', 6', 7' and 8.5' Wide Models)
- Floor Cross Members 24" On Center (4', 5', 6' and 7' Wide Models)
- Floor Cross Members 16" On Center (8.5' Wide Models)
- Rust Inhibiting Z-Tech Protection on Chassis
- One Piece Aluminum Roof
- 24" Stone Guard

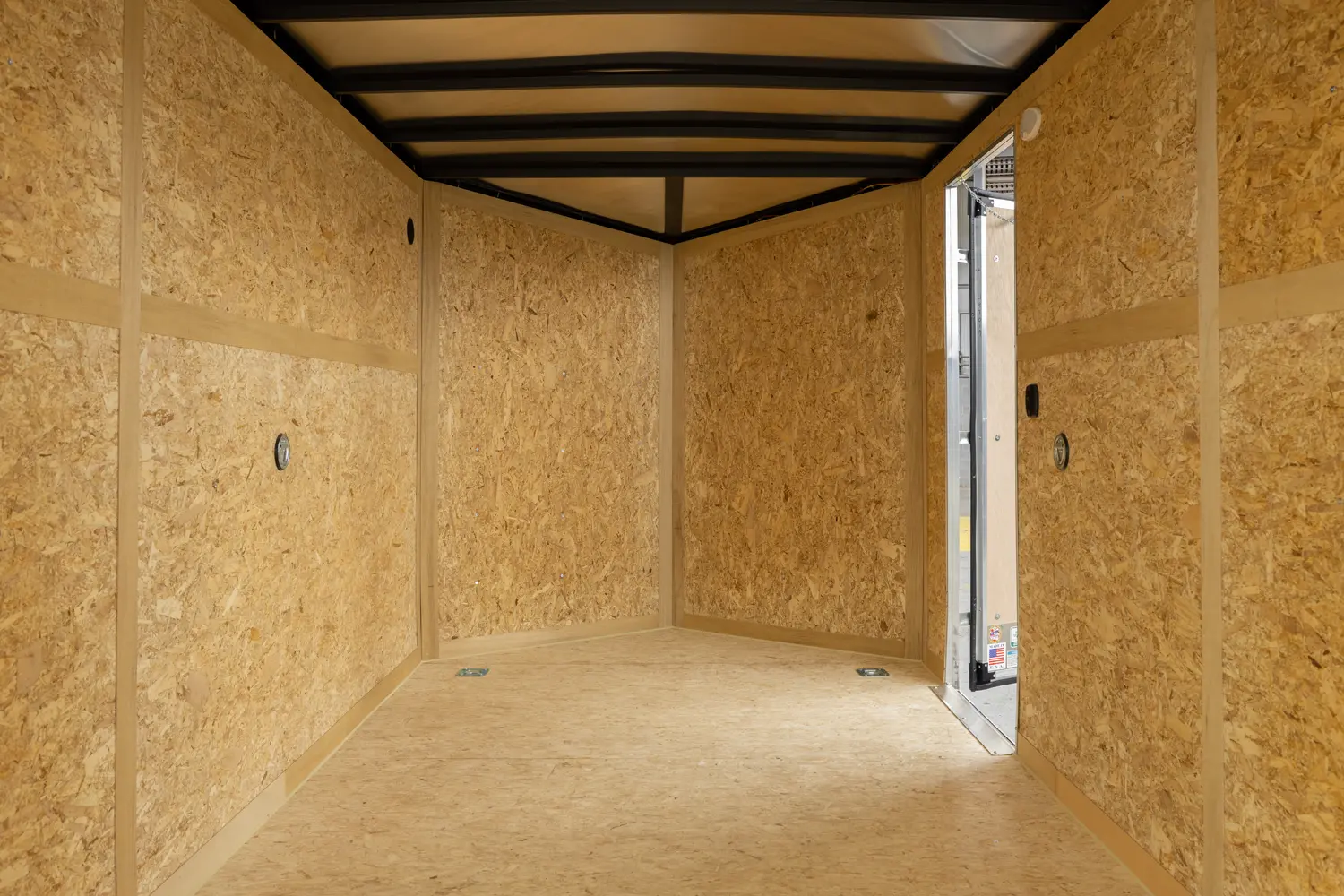

- 3/8" Engineered Wood Walls
- 3/4" Engineered Wood Floor
- .030 Exterior Metal with Screwed Down Seams
- 1) Pair Flow Through Vents
- 3" Top and Bottom Trim
- LED Clearance Lights and Tail Lights
- LED Back-up Tail Light w/ Electric Brakes Models
- (1) Interior LED Dome Light
- Sand Pad
- Aluminum Door Hold Backs

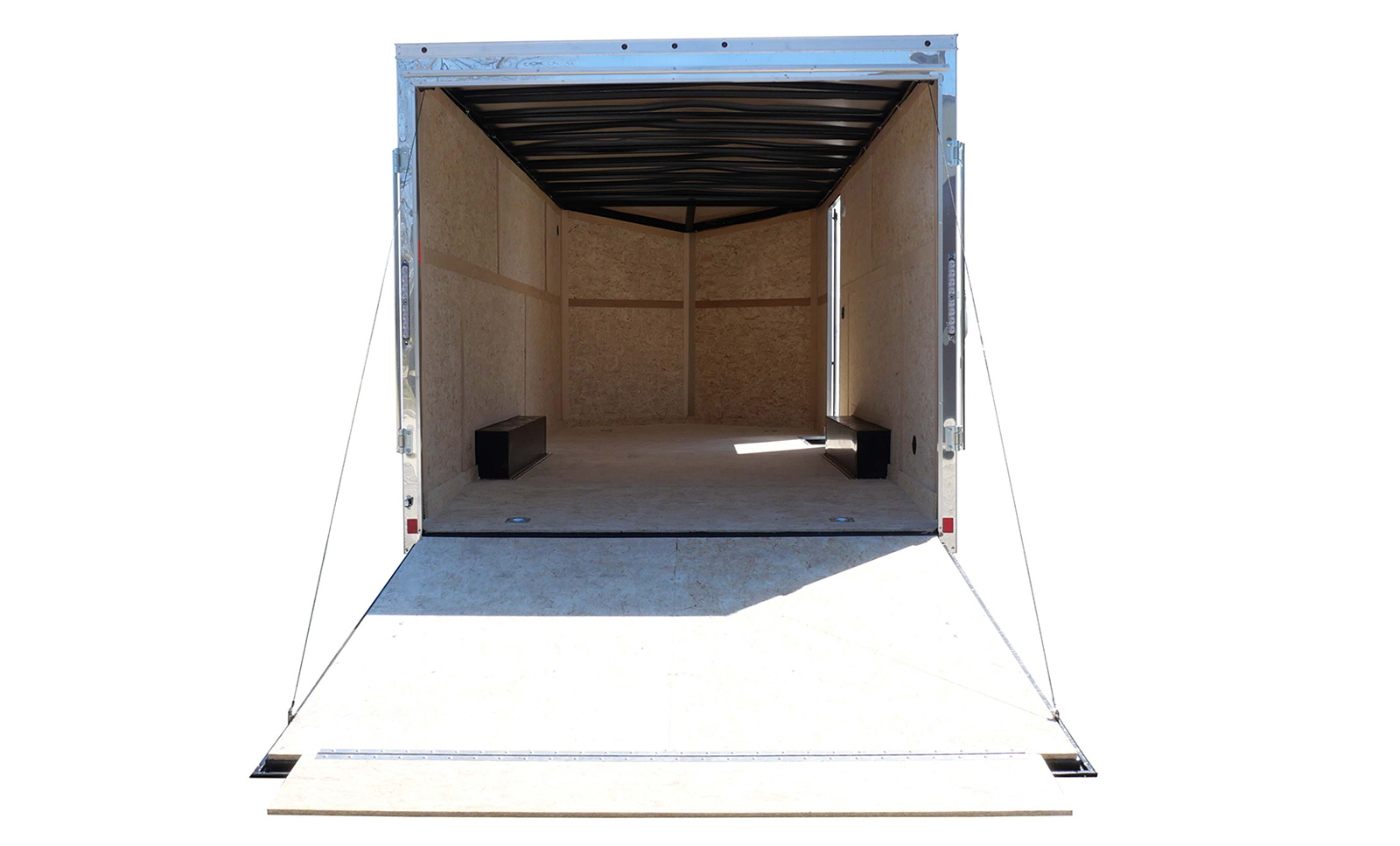

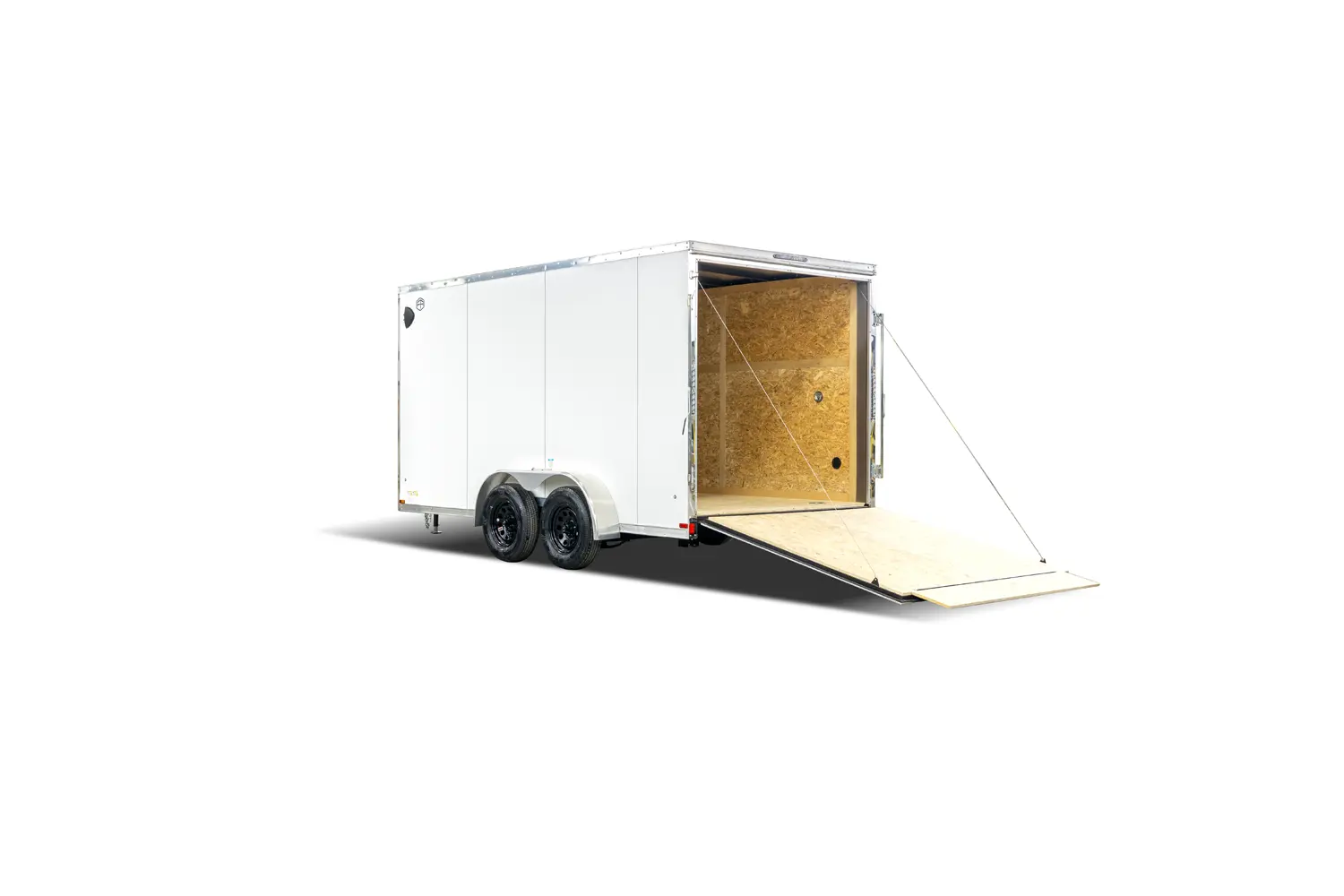

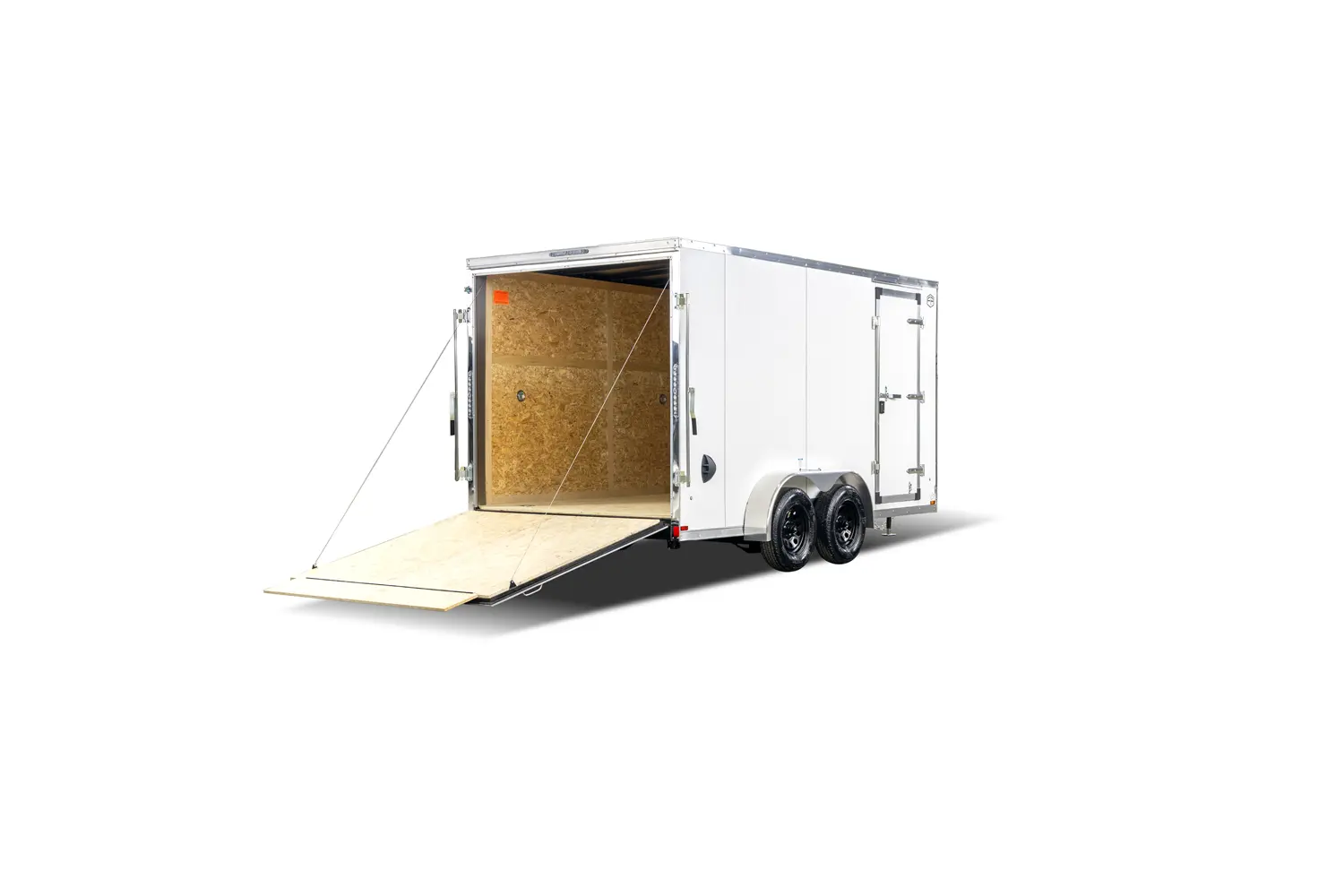

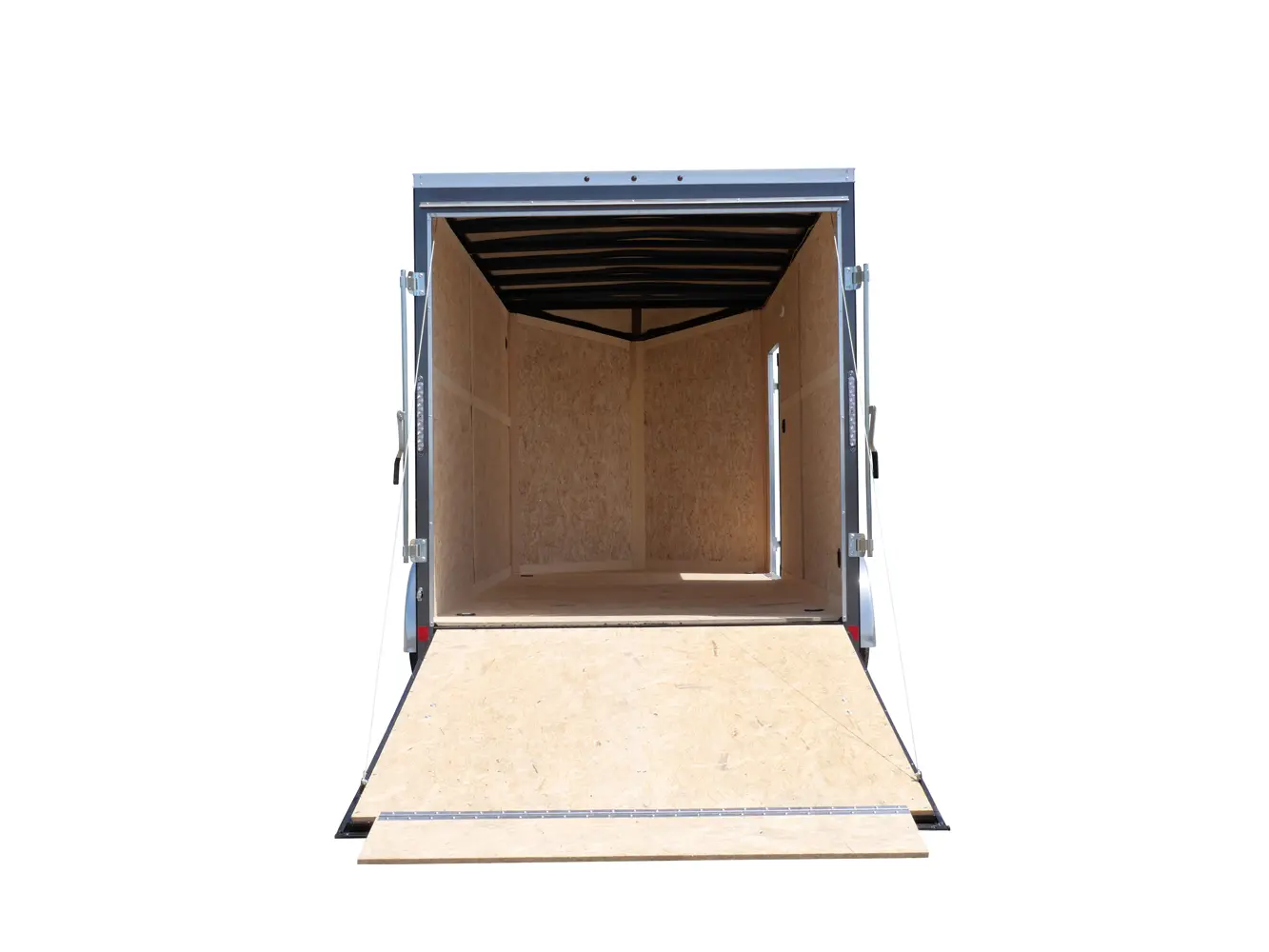

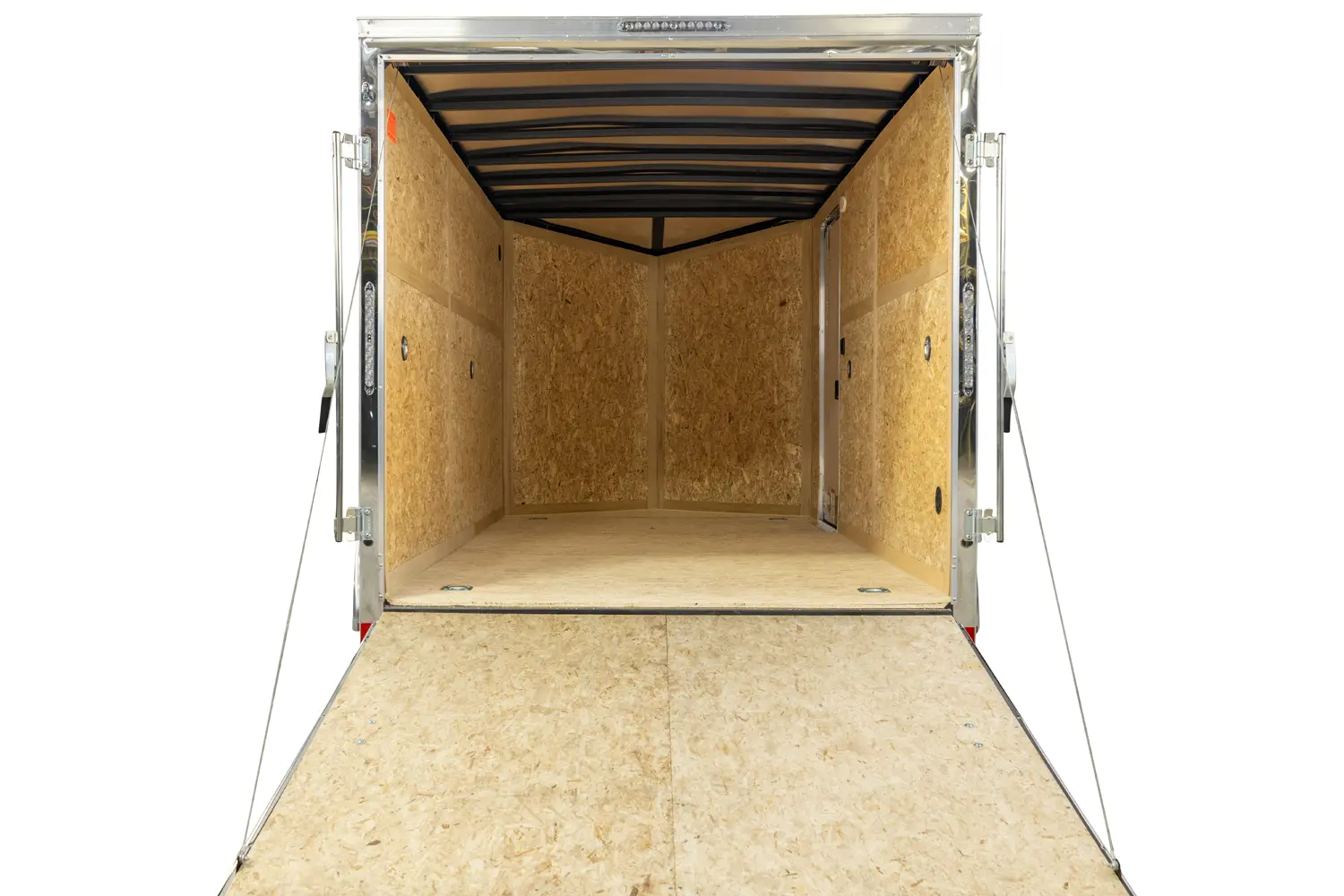

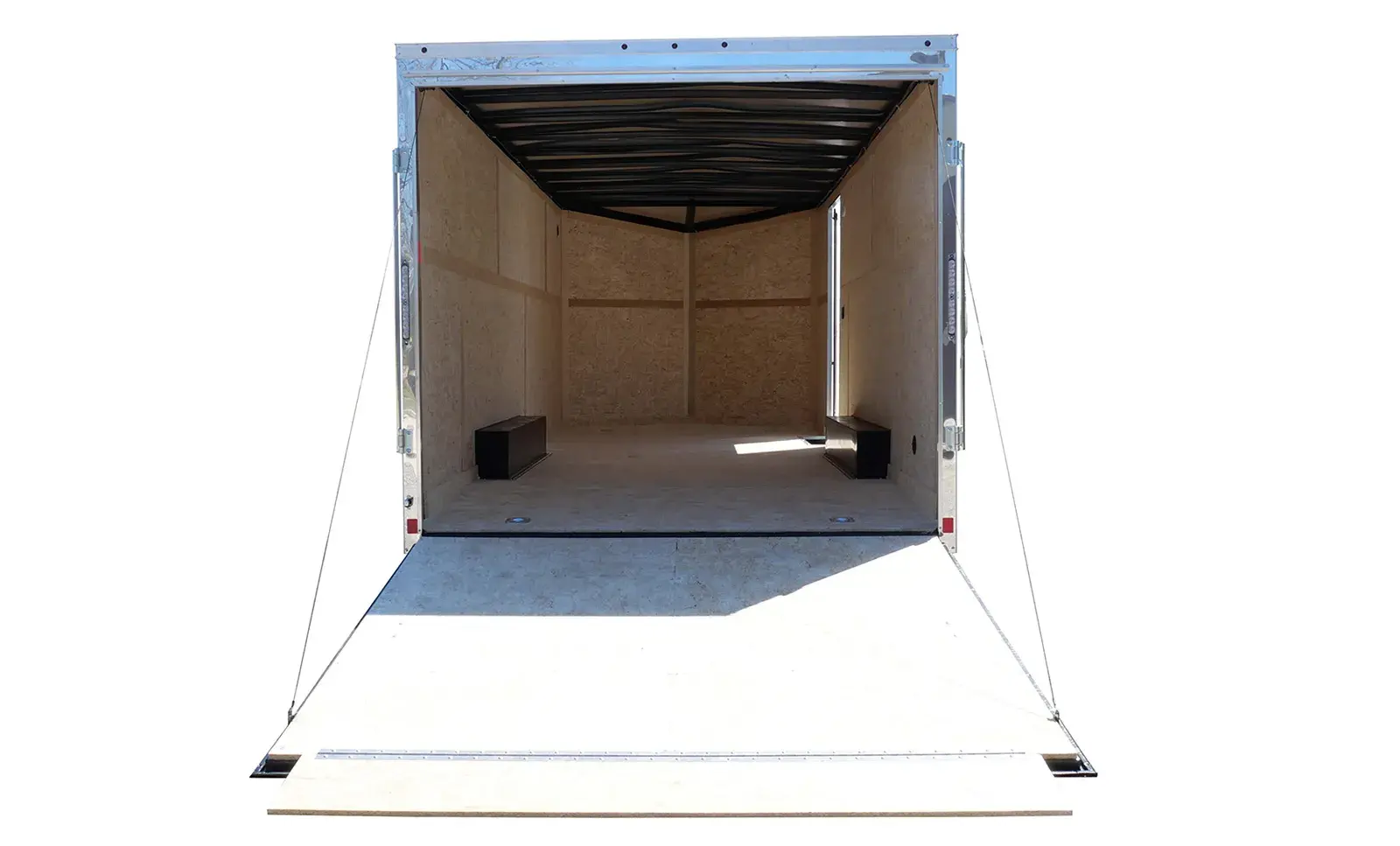

- Ramp Door
- Spring Axles
- Black Mods w/ Radial Tires
- Anodized V-Nose & Rear Hoop

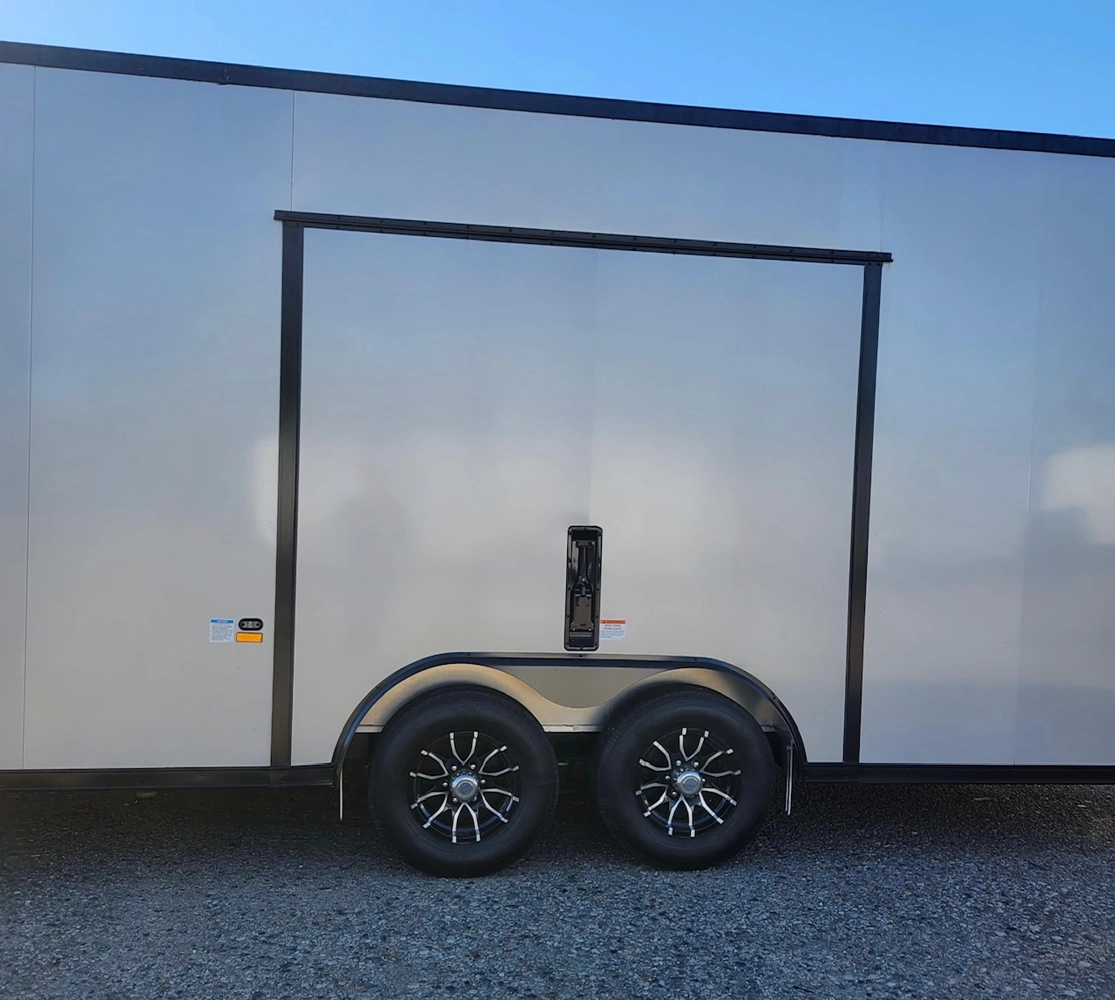

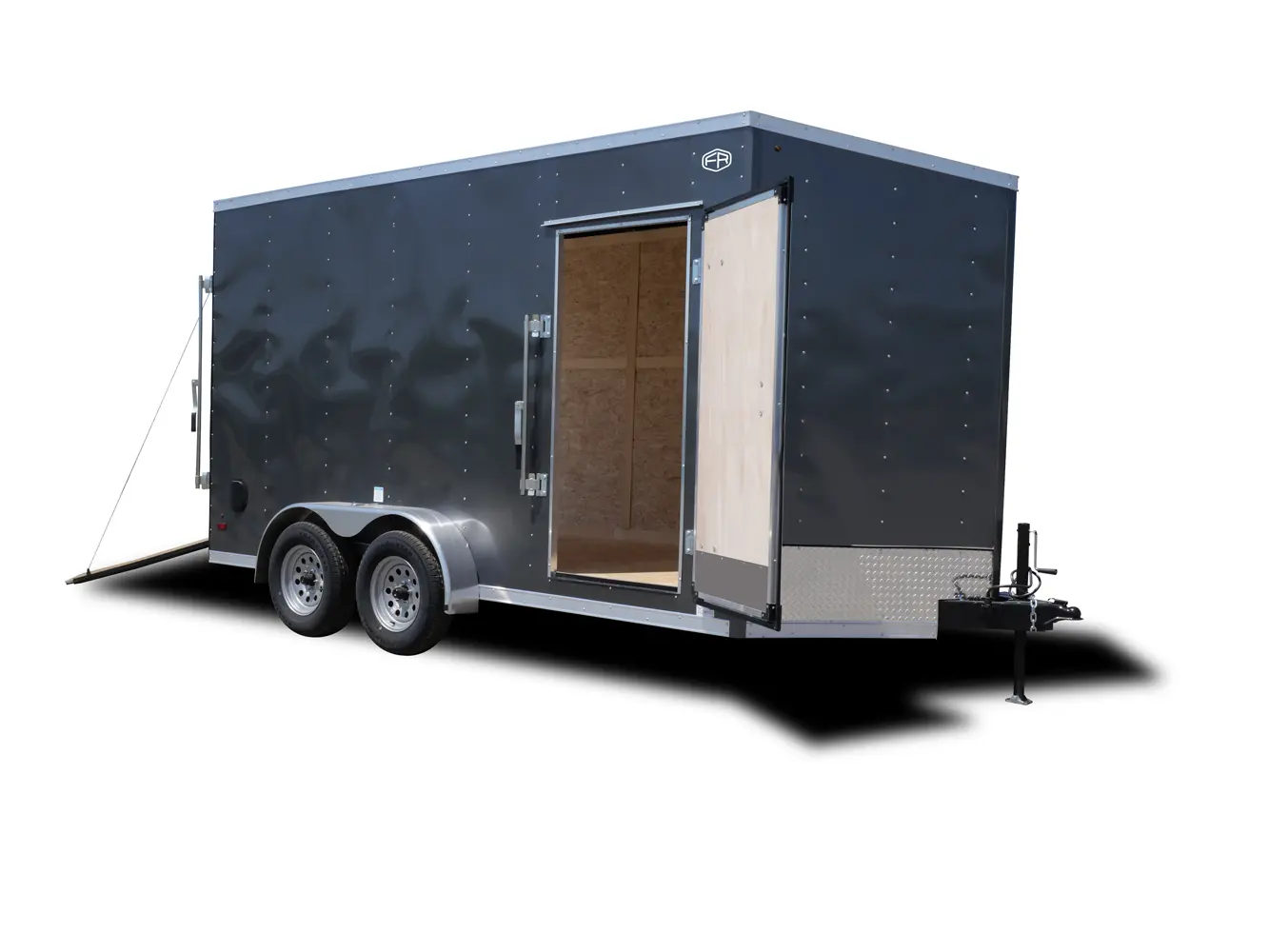

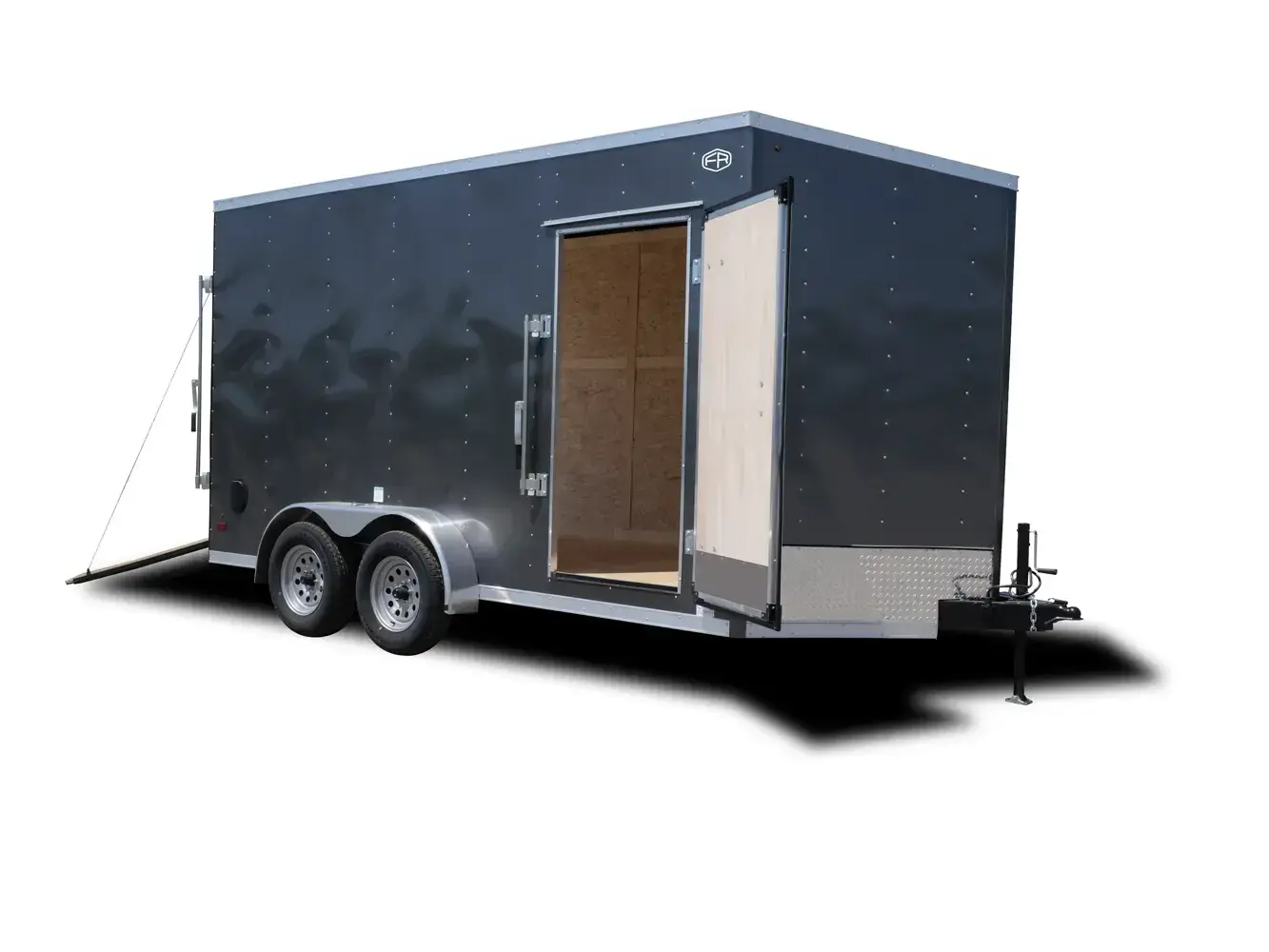

- 32" Pre-Hung Square Side Door on 6' and 7' Wide Models
- 36" on 8.5' Wide Models
- Side Door Optional on 5' Wide Models
Specifications
| ULAFT46SA Get a Quote | ULAFT48SA Get a Quote | ULAFT58SA Get a Quote | ULAFT510SA Get a Quote | ULAFT68SA Get a Quote | ULAFT610SA Get a Quote | ULAFT612SA Get a Quote | ULAFT614SA Get a Quote | ULAFT612TA2 Get a Quote | ULAFT614TA2 Get a Quote | ULAFT712SAE Get a Quote | ULAFT714SAE Get a Quote | ULAFT710TA2 Get a Quote | ULAFT712TA2 Get a Quote | ULAFT714TA2 Get a Quote | ULAFT716TA2 Get a Quote | ULAFT718TA2 Get a Quote | ULAFT720TA2 Get a Quote | ULAFT8516TA2 Get a Quote | ULAFT8518TA2 Get a Quote | ULAFT8520TA2 Get a Quote | ULAFT8522TA2 Get a Quote | ULAFT8524TA2 Get a Quote | ULAFT8516TA3 Get a Quote | ULAFT8518TA3 Get a Quote | ULAFT8520TA3 Get a Quote | ULAFT8522TA3 Get a Quote | ULAFT8524TA3 Get a Quote | ULAFT8526TA3 Get a Quote | ULAFT8528TA3 Get a Quote | ULAFT8530TA3 Get a Quote | ULAFT8532TA3 Get a Quote | |
| GVWR: | 2000 lb. | 2000 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 7000 lb. | 7000 lb. | 3500 lb. | 3500 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. |
| Payload Capacity: | 1420 | 1350 | 2200 | 2110 | 1870 | 1835 | 1700 | 1560 | 5295 | 5160 | 1710 | 1530 | 5250 | 5060 | 4880 | 4700 | 4510 | 4320 | 4250 | 4065 | 3880 | 3695 | 3510 | 6925 | 6740 | 6555 | 6370 | 6185 | 5415 | 5240 | 5065 | 4890 |
| Exterior Length: | 9' 10" | 11' 10" | 11' 10" | 14' 1" | 12' 3" | 13' 10" | 15' 10" | 17' 10" | 15' 10" | 17' 10" | 15' 10" | 17' 10" | 13' 10" | 15' 10" | 17' 10" | 19' 10" | 21' 10" | 23' 10" | 18' 10" | 20' 10" | 22' 10" | 24' 10" | 26' 10" | 18' 10" | 20' 10" | 22' 10" | 24' 10" | 26' 10" | 28' 10" | 30' 10" | 32' 10" | 34' 10" |
| Exterior Width: | 5' 6" | 5' 6" | 6' 6" | 6' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" |
| Exterior Height: | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" |
| Interior Length: | 6' 0" | 8' 0" | 8' 0" | 10' 0" | 8' 0" | 10' 0" | 12' 0" | 14' 0" | 12' 0" | 14' 0" | 12' 0" | 14' 0" | 10' 0" | 12' 0" | 14' 0" | 16' 0" | 18' 0" | 20' 0" | 16' 0" | 18' 0" | 20' 0" | 22' 0" | 24' 0" | 16' 0" | 18' 0" | 20' 0" | 22' 0" | 24' 0" | 26' 0" | 28' 0" | 30' 0" | 32' 0" |
| Interior Width: | 3' 8" | 3' 8" | 4' 8" | 4' 8" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 6' 9" | 6' 9" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" |
| Interior Height: | 4' 11" | 4' 11" | 4' 11" | 4' 11" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 5' 11" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" |
| Rear Door Type: | Single | Single | Single | Single | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp |
| Rear Door Width: | 3' 6" | 3' 6" | 4' 6" | 4' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" |
| Rear Door Height: | 3' 8" | 3' 8" | 4' 4" | 4' 4" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" |
| Side Door Size: | Door Optional | Door Optional | Door Optional | Door Optional | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 74" | 32" x 74" | 32" x 74" | 32" x 74" | 32" x 74" | 32" x 74" | 32" x 74" | 32" x 74" | 32" x 74" | 32" x 74" | 32" x 74" | 32" x 74" | 32" x 74" | 32" x 74" |
| Coupler Size: | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" |
| Curb Weight: | 580 | 650 | 790 | 880 | 1020 | 1155 | 1290 | 1430 | 1705 | 1840 | 1790 | 1970 | 1750 | 1940 | 2120 | 2300 | 2490 | 2680 | 2750 | 2935 | 3120 | 3305 | 3490 | 2875 | 3060 | 3245 | 3430 | 3615 | 4385 | 4560 | 4735 | 4910 |
| Hitch Weight: | 58 | 65 | 79 | 88 | 102 | 120 | 133 | 147 | 175 | 184 | 179 | 197 | 175 | 194 | 212 | 230 | 249 | 268 | 275 | 293 | 312 | 330 | 349 | 287 | 306 | 324 | 343 | 361 | 438 | 456 | 473 | 491 |
| Hitch Height: | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 20" | 20" | 16" | 20" | 20" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" |
| Platform Height: | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 16 | 16 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Axle: | 1-2,000 | 1-2,000 | 1-3,500 | 1-3,500 | 1-3,500 | 1-3,500 | 1-3,500 | 1-3,500 | 2-3,500 | 2-3,500 | 1-3,500 | 1-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 |
| Suspension: | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring |
| Brakes: | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric |
| Tires: | ST175/80R13 | ST175/80R13 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST225/75R15 | ST225/75R15 | ST225/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 |
| Wheels: | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt |
| Main Frame: | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 4" Tube | 4" Tube | 4" Tube | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam |
| Floor: | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered |
| Floor Members: | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 16" On Center | 16" On Center | 16" On Center | 16" On Center | 16" On Center | 16" On Center | 16" On Center | 16" On Center | 16" On Center | 16" On Center | 16" On Center | 16" On Center | 16" On Center | 16" On Center |
| Walls: | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered |
| Wall Posts: | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center |
| Roof Bows: | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center | 24" On Center |
